High Voltage Wound Rotor Motor for Heavy Industrial Applications

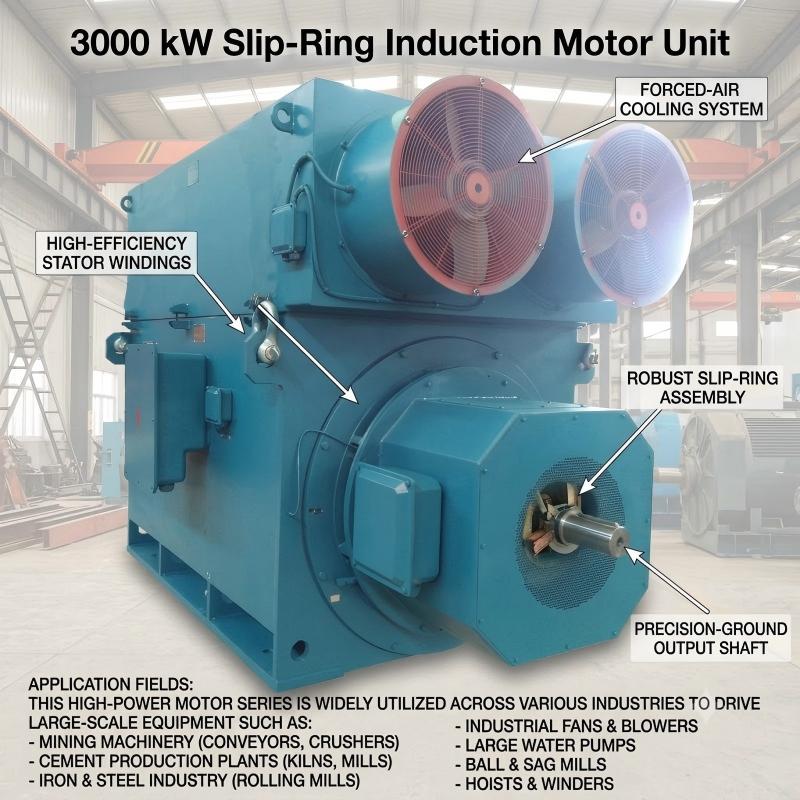

3000kW Slip Ring Motor
A 3000kW Slip Ring Motor, also known as a Slip Ring Induction Motor, Wound Rotor Motor, or Wound Rotor Induction Motor, is a high-performance electric motor specifically designed for heavy-duty industrial applications requiring high starting torque and reliable continuous operation.
As a Wound Rotor Slip Ring Motor, the rotor windings are connected to external resistors through slip rings and carbon brushes. This design enables smooth starting, reduced inrush current, and excellent torque performance, making it ideal for driving high-inertia equipment.
Our Three Phase Slip Ring Motor series is available in both High Voltage Slip Ring Motor and Medium Voltage Slip Ring Motor configurations to meet various industrial power requirements.
Working Principle
Unlike squirrel cage motors, a Slip Ring Induction Motor features a wound rotor whose windings are connected to slip rings mounted on the shaft.
During startup:
External resistors are connected to the rotor circuit.
Starting current is significantly reduced.
Starting torque is greatly increased.
Mechanical stress on the driven equipment is minimized.
As the motor accelerates, the external resistance is gradually removed until the rotor is short-circuited for normal operation.
This operating principle makes the Wound Rotor Motor an ideal solution for applications requiring high starting torque.
Key Features
High Starting Torque
The Heavy Duty Slip Ring Motor can provide starting torque up to 200–250% of rated torque, making it suitable for heavy-load startup.
Reduced Starting Current
Compared with conventional squirrel cage motors, the AC Slip Ring Motor significantly reduces starting current, minimizing voltage drops and protecting the electrical network.
Excellent Reliability
Designed with premium insulation systems, precision bearings, and optimized cooling structures, our High Voltage Slip Ring Motor ensures stable operation under demanding industrial environments.
Easy Maintenance
The slip ring and brush assembly is designed for convenient inspection and maintenance, reducing downtime and maintenance costs.
High Efficiency
Advanced electromagnetic design delivers excellent efficiency, low vibration, and long service life.
Typical Technical Specifications
Item Specification
Motor Type Slip Ring Motor / Wound Rotor Slip Ring Motor
Rated Power 3000 kW
Voltage 6 kV, 10 kV, 11 kV
Frequency 50 Hz / 60 Hz
Phase Three Phase
Speed 740–1500 rpm
Cooling Method IC611 / IC81W
Protection Class IP54 / IP55
Insulation Class Class F / Class H
Efficiency Up to 97%
Typical Applications
Our 3000 kW Slip Ring Motor is widely used in industries where high starting torque and reliable operation are essential.
Typical applications include:

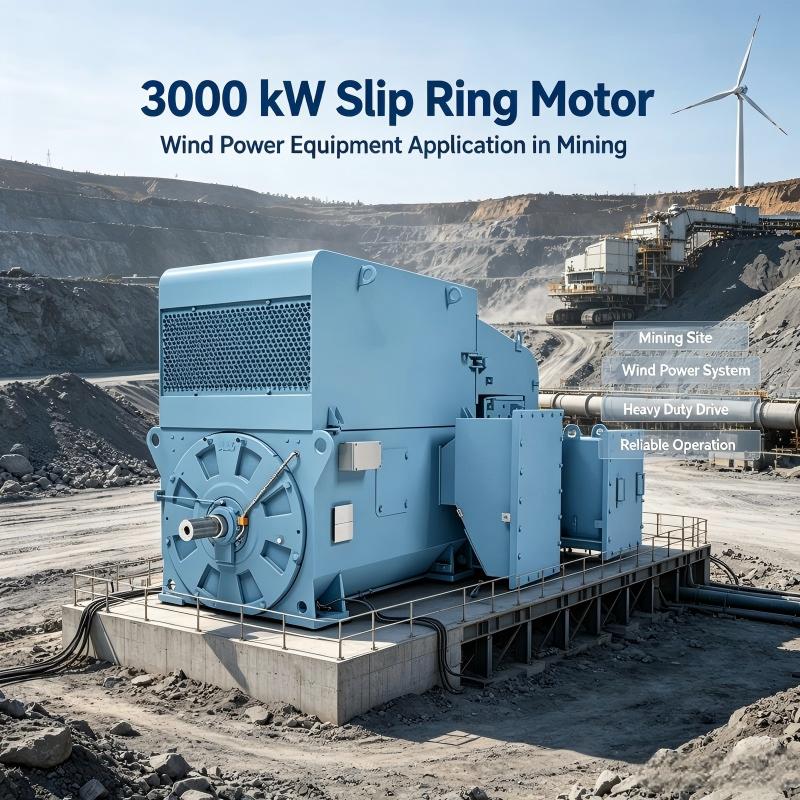

Mining Industry / Cement Plants / Steel Industry / Power Plants / Mineral Processing / Ball Mills / Crushers /

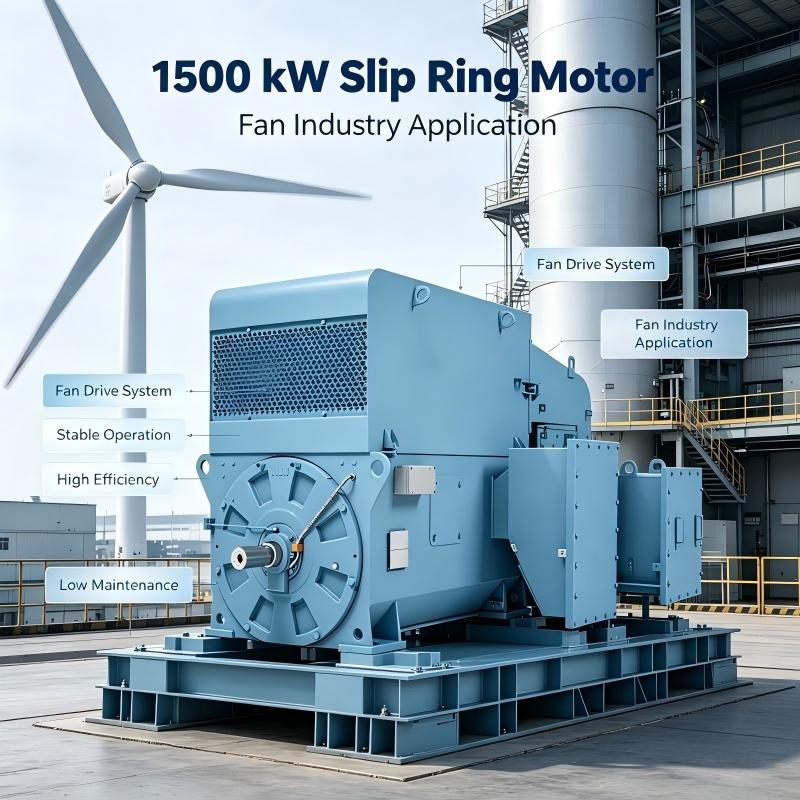

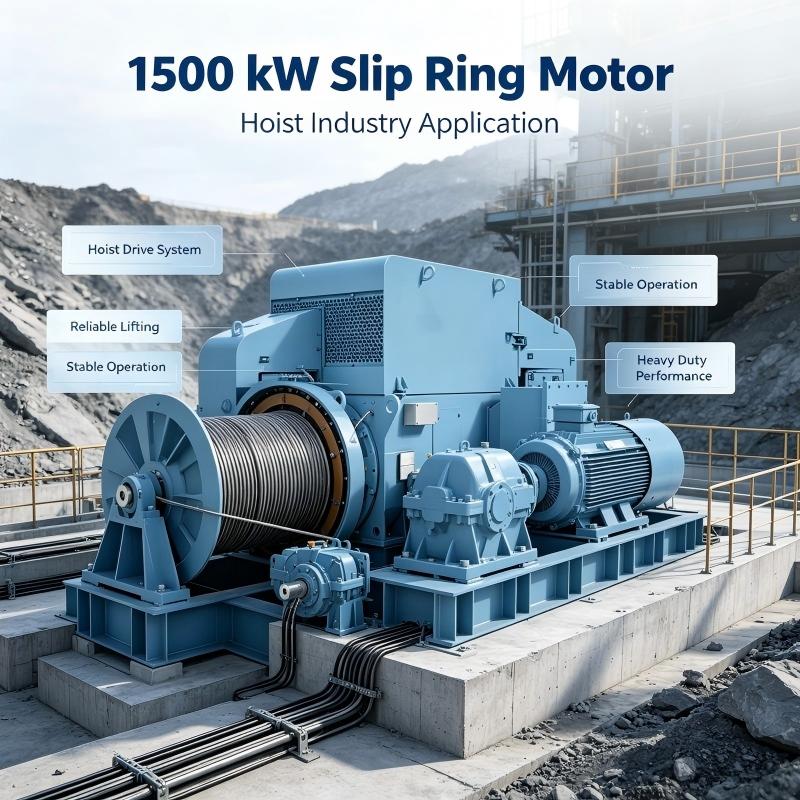

Mine Hoists / Belt Conveyors /Large Fans / Industrial Pumps / Compressors Rotary Kilns
Whether operating as a Medium Voltage Slip Ring Motor or a High Voltage Slip Ring Motor, these machines provide dependable performance under the most demanding working conditions.
Advantages of Wound Rotor Slip Ring Motors
Compared with squirrel cage induction motors, a Wound Rotor Slip Ring Motor offers several important advantages:
Higher starting torque Lower starting current Reduced mechanical stress
Better performance for high-inertia loads Improved power system stability
Suitable for frequent heavy-duty starting Long service life with proper maintenance
These benefits make the Heavy Duty Slip Ring Motor the preferred choice for critical industrial applications.
Why Choose Our Slip Ring Motors?
Our AC Slip Ring Motor product line is manufactured using advanced production technology and strict quality control procedures to ensure superior reliability and long-term performance.
We provide:
Customized engineering solutions High Voltage and Medium Voltage designs
International IEC standards Premium insulation systems
OEM and project support Global technical service
Whether you require a Slip Ring Motor, Slip Ring Induction Motor, Wound Rotor Motor, or Three Phase Slip Ring Motor, our engineering team can provide customized solutions tailored to your specific application.
