Intelligent 3D Selection System for Motor Reducers

 I. System Name

China Weigao Transmission Motor Reducer 3D Intelligent Selection System V1.0

 II. System Development Subject

China Weigao Transmission Co., Ltd

 III. System Core Positioning

Based on our company's full range of motor and reducer product systems, we aim to build an intelligent selection platform that integrates parameter selection, 3D visual preview, technical parameter verification, and model matching**. This platform caters to the needs of rapid selection, technical verification, and solution output in industrial scenarios, achieving digitalization, visualization, and precision in the entire product selection process. This enhances customers' selection efficiency and accuracy.

 IV. Core Functional System (Full-Dimensional Coverage)

1. Product Series Selection: Supports tens of thousands of product models, including general-purpose motors, variable frequency motors, brake motors, precision motors, explosion-proof motors and gearboxes, geared motors, gear reducers, mixer reducers, and industrial gearboxes, enabling precise selection across categories.

2.Key Parameter Configuration: Supports custom configuration of various reduction ratios, motor power, installation methods, output methods, model specifications, and output speeds, meeting both standard and non-standard selection needs..

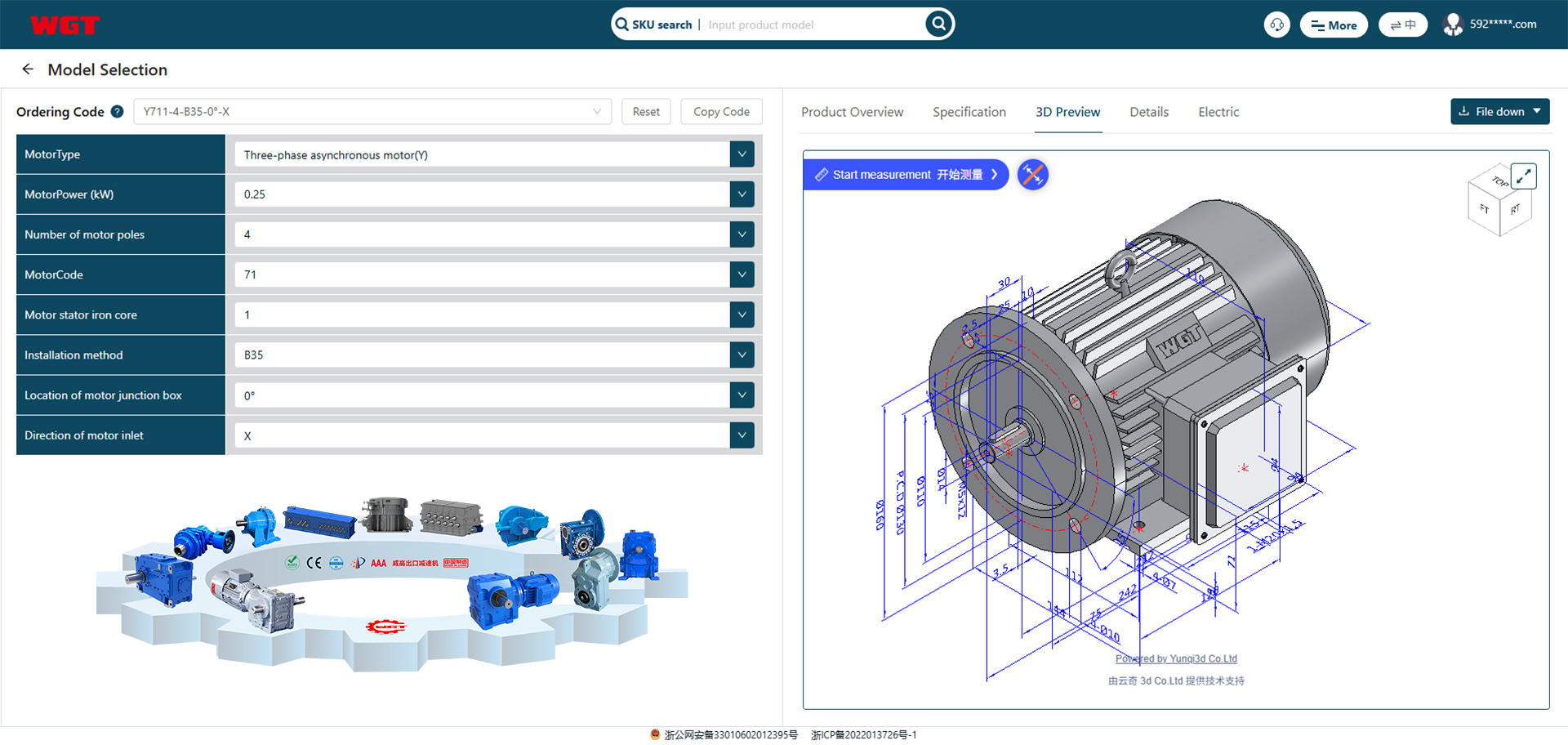

3. 3D Model Visualization: Upon completion of model selection, the lightweight 3D model of the corresponding product is instantly loaded. It supports model rotation, zooming, and perspective switching, clearly displaying the product structure, installation dimensions, and appearance details, and intuitively presenting the overall appearance of the product.

4. Intelligent matching verification: Built-in product parameter verification logic automatically verifies parameter adaptability, eliminates invalid model selection, provides real-time feedback on matching results, and simultaneously generates compliant product models.

5. Technical parameter output: One-click access to complete technical parameters of selected products, including core data such as rated torque, transmission efficiency, installation dimensions, and applicable operating conditions. Supports quick export of parameter lists and preparation of applicable engineering solutions.

V. Core Advantages of the System

✅ Precise selection: Strictly matching the company's product technical standards, with zero error in parameter verification, and 100% compliance in model output;

✅ Strong visualization: 3D models intuitively present product details, addressing the pain points of abstraction in traditional model selection;

✅ Efficient and Convenient: One-click operation throughout the entire process, with model selection, verification, and parameter output taking only seconds, significantly enhancing the efficiency of model selection;

✅ Scene Adaptability: Compatible with PC terminals and industrial touch screens, it can be embedded into corporate websites and offline exhibition halls, meeting the needs of multiple scenarios both online and offline;

✅ Brand Exclusivity: Deeply compatible with China Weigao Transmission's product system, with exclusive custom development that aligns with the company's product layout and customer needs.
