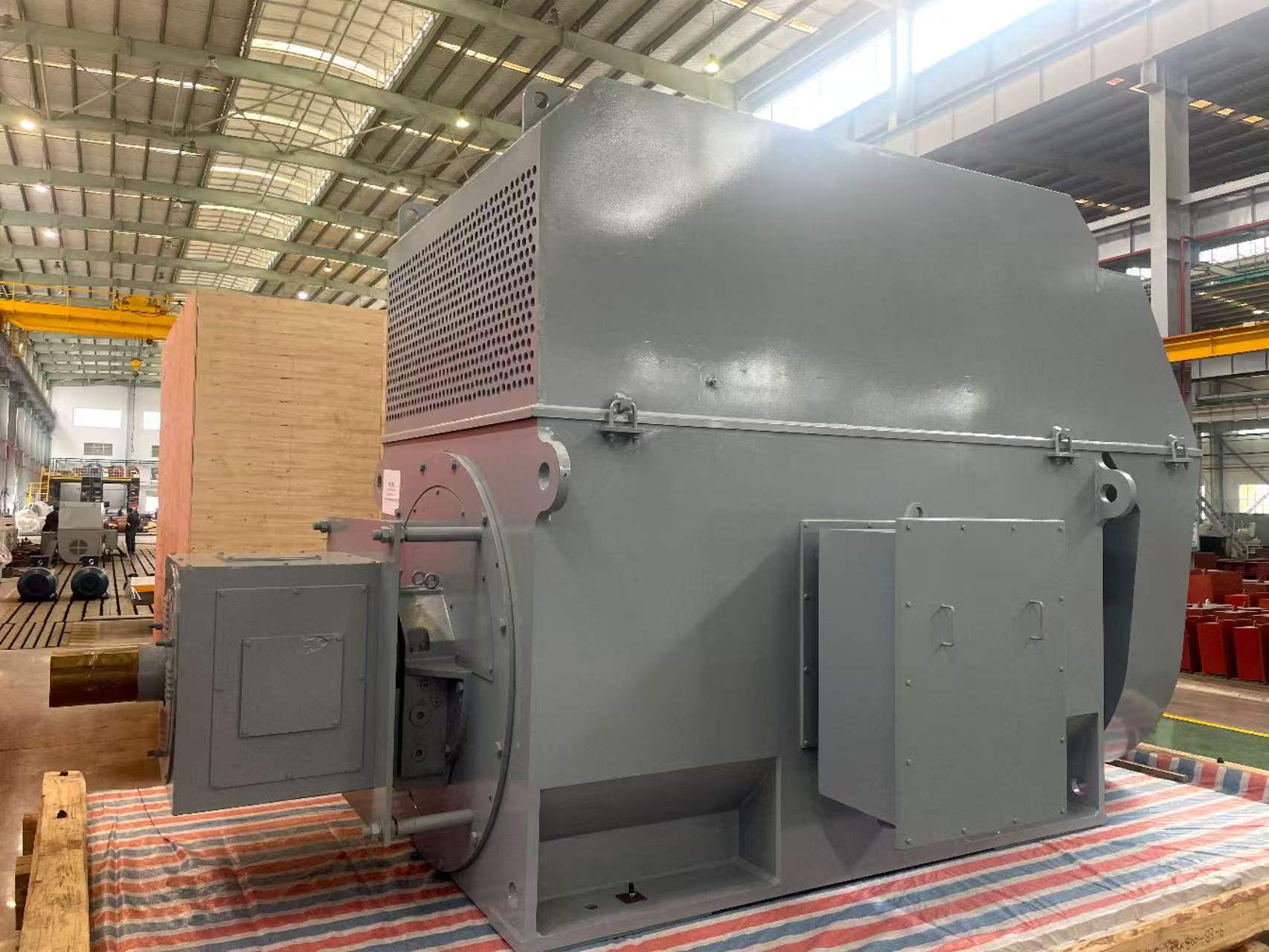

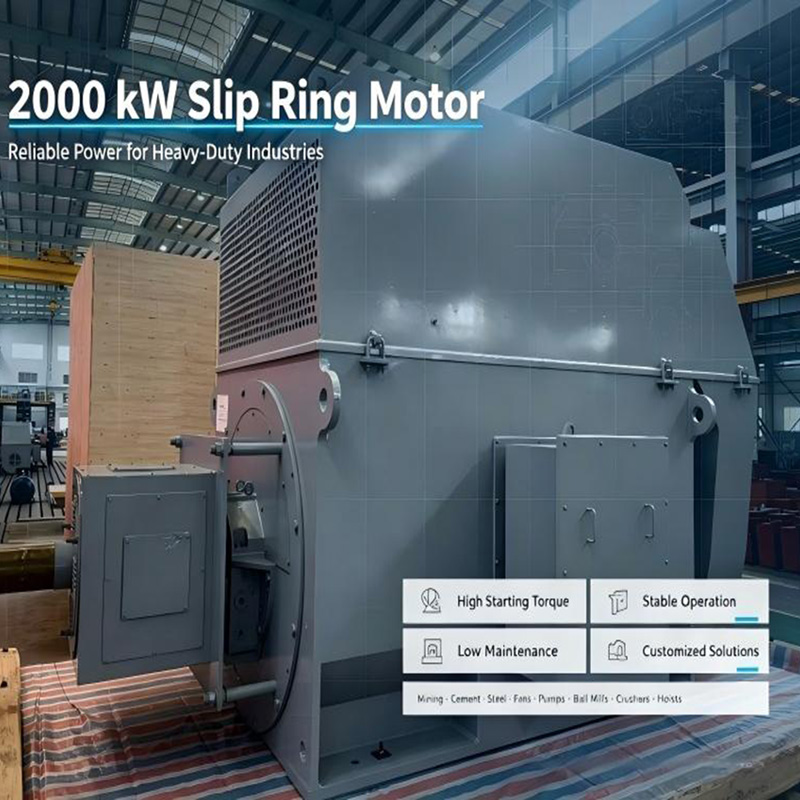

2000kW Wound-rotor slip-ring motor

39 Views

The 2000 kW slip ring motor (wound rotor induction motor) is engineered for heavy-duty industrial applications requiring high starting torque, low inrush current, and stable long-term full-load operation. It perfectly solves startup challenges for high-inertia equipment without causing grid fluctuations.
This three-phase motor covers complete medium/high voltage specifications: 3300V, 6000V, 6600V, 10000V, 11000V Slip Ring Motor, complying with global IEC power standards. Its wound rotor design connects external resistors via slip rings for smooth, controlled acceleration, delivering up to 250% rated starting torque while minimizing electrical and mechanical impact.
Core Features
- Optimized for 2000kW ultra-heavy continuous load
- Low starting current for grid protection
- IP54/IP55/IP56 protection, F/H class insulation
- Reinforced structure for dust, moisture and vibration environments
- Easy brush/slip ring maintenance, low lifecycle cost
- Customizable speed, cooling (IC611/IC81W) and mounting
Specifications & Applications
Rated power: 2000kW; Frequency: 50/60Hz; Speed: 740–1480rpm. Widely deployed for ball mills, crushers, mine hoists, belt conveyors, industrial fans, pumps and rotary kilns in mining, cement, steel and chemical industries.
Available in all mainstream voltage grades, this energy-efficient motor avoids power redundancy of oversized models. We provide CE/EAC certified units with full customization, helping global users cut energy consumption and maintenance costs.
Contact us: sales@changlimotor.com | www.changlimotor.com
Keywords: 3300V Slip Ring Motor, 6000V Slip Ring Motor, 6600V Slip Ring Motor, 10000V Slip Ring Motor, 11000V Slip Ring Motor, 2000kW Wound Rotor Induction Motor

Get a Quote

Category :

Wound Rotor Slip Ring Motors

Description

2000 kW Slip Ring Motor – High Voltage Heavy Duty Industrial Motor

A 2000 kW Slip Ring Motor, also known as a Slip Ring Induction Motor, Wound Rotor Motor, Wound Rotor Induction Motor, or Wound Rotor Slip Ring Motor, is specifically designed for heavy industrial applications that require high starting torque, low starting current, and reliable long-term operation. Optimized for large-scale heavy-load scenarios, this 2000kW model balances power output, energy efficiency, and grid compatibility for core heavy industrial sites with high power demand.

Our Three Phase Slip Ring Motor covers complete medium and high voltage specifications, including 3300V Slip Ring Motor, 6000V Slip Ring Motor, 6600V Slip Ring Motor, 10000V Slip Ring Motor and 11000V Slip Ring Motor, fully compatible with global industrial power grid standards. Available as both a Medium Voltage Slip Ring Motor and High Voltage Slip Ring Motor, it supports customized voltage configuration based on on-site grid conditions. The wound rotor construction allows external resistors to be connected through slip rings during startup, providing smooth acceleration while minimizing electrical and mechanical stress. This structural advantage makes the 2000kW wound rotor motor perfectly adaptable to ultra-high-inertia equipment startup demands without causing grid fluctuation or power system impact.

Compared with conventional squirrel cage motors, the AC Slip Ring Motor offers superior starting performance for high-inertia and large-load equipment. It effectively reduces inrush current, improves power system stability, and delivers starting torque up to 250% of rated torque, making it ideal for continuous heavy-duty operation under full-load working conditions. The 2000kW power rating fills the performance gap between medium-large power and large-power industrial motors, serving as a cost-effective alternative to oversized 2500kW/3000kW motors for precisely matched heavy-load conditions, avoiding redundant power loss and excessive procurement costs.

Key Features

High starting torque customized for 2000kW ultra-heavy-load continuous operating conditions
Low starting current with minimal impact on high-capacity industrial power grids
High-grade operational efficiency and thermally stable, reliable long-term performance under full-load operation
Reinforced rugged integrated construction for harsh dust, moisture, corrosion and strong vibration industrial environments
Easy disassembly and modular maintenance of slip rings and brush assemblies, low lifecycle operational and maintenance cost
Customizable voltage, rated speed, cooling method, mounting configuration and rotor parameters to match complex on-site installation and process requirements

Typical Specifications

Rated Power: 2000 kW
Voltage: 3.3kV(3300V), 6kV(6000V), 6.6kV(6600V), 10kV(10000V), 11kV(11000V)
Frequency: 50Hz / 60Hz
Speed: 740–1480 rpm
Protection Class: IP54 / IP55 / IP56 (optional)
Insulation Class: Class F or H
Cooling Method: IC611 or IC81W (water cooling for high-temperature environments)

Applications

Our Heavy Duty Slip Ring Motor is widely used in core industrial scenarios requiring reliable large-scale heavy-load starting, where the 2000kW power rating is the optimal matched solution for high-capacity process equipment:

Mining industry main process equipment and large auxiliary transmission systems
Cement Plants large-capacity raw material mills and clinker processing production lines
Steel Mills heavy-duty material conveying and main rolling mill auxiliary drives
Large-sized Ball Mills for mineral and raw material grinding
Heavy-duty Primary & Secondary Crushers for ore and bulk materials
Large-capacity Mine Hoists and underground lifting equipment
Long-distance, high-capacity Belt Conveyors for bulk material transportation
Large industrial axial/centrifugal ventilation Fans for mines and factories
High-flow heavy-duty Industrial Pumps for water supply and slurry transportation
High-power Process Compressors for chemical and metallurgical industries
Large-sized Rotary Kilns for cement, metallurgy and chemical processing
Whether configured as 3300V Slip Ring Motor, 6000V Slip Ring Motor, 6600V Slip Ring Motor, 10000V Slip Ring Motor or 11000V Slip Ring Motor, this 2000kW model provides excellent structural durability, ultra-stable full-load operation, and extended service life under the most demanding working conditions. It avoids energy waste caused by power redundancy of higher-power motors while fully meeting ultra-heavy-load startup and 24/7 continuous operation requirements, adapting to diverse voltage standards for mining, cement, steel and chemical industries worldwide.
Manufactured with advanced integral casting production technology and strict full-process quality control, our Slip Ring Motor solutions comply with IEC and other international standards and can be deeply customized to meet specific project power, environmental and installation requirements. As a trusted global Wound Rotor Slip Ring Motor supplier, we provide reliable, energy-efficient 2000kW motors that help improve overall production productivity while reducing energy consumption and long-term maintenance costs for heavy industrial applications worldwide.

Explore Our Motor Solutions

For inquiries regarding this product or to request a professional product catalog, please contact our international sales team today:

Email: sales@changlimotor.com
Official Website:www.changlimotor.com ； www.wgt.net.cn

Document Downloads and Product Certifications

00_YKK_Series_Technical_Data_6KV_10KV.pdf

01_Changli Motor Product Catalog.pdf

02_Changli Motor Abbreviated Brochure.pdf

03_Changli Motor Production Equipment Photos.pdf

04_Changli Motor Production Equipment List.pdf

05_Changli Motor EU CE & EAC Certifications.pdf

06_Changli Electric Promotional Video (English).mp4

07_Changli Electric Qualification Documents Portfolio 2024.pdf

Electric Motor, AC Motor, High Voltage Motor, Medium Voltage Motor, Low Voltage Motor, 3300V Slip Ring Motor, 6000V Slip Ring Motor, 6600V Slip Ring Motor, 10000V Slip Ring Motor, 11000V Slip Ring Motor, Induction Motor, Synchronous Motor, Slip Ring Motor, Three-Phase Asynchronous Motor, Explosion-Proof Motor, Permanent Magnet Synchronous Motor, Vertical Motor, Squirrel Cage Motor, Wound Rotor Induction Motor, High Efficiency Motor, Large Electric Motor, Synchronous Generator, Synchronous Condenser
* 2000kW Slip Ring Motor for Ball Mill * 2000kW Slip Ring Motor for Crusher * 2000kW Slip Ring Motor for Conveyor * 2000kW Slip Ring Motor for Hoist * 2000kW Slip Ring Motor for Mine Hoist * 2000kW Slip Ring Motor for Cement Mill * 2000kW Slip Ring Motor for Fan * 2000kW Slip Ring Motor for Blower * 2000kW Slip Ring Motor for Pump * 2000kW Slip Ring Motor for Winch * 2000kW Slip Ring Motor for Grinding Mill * 2000kW Slip Ring Motor for Pulverizer
