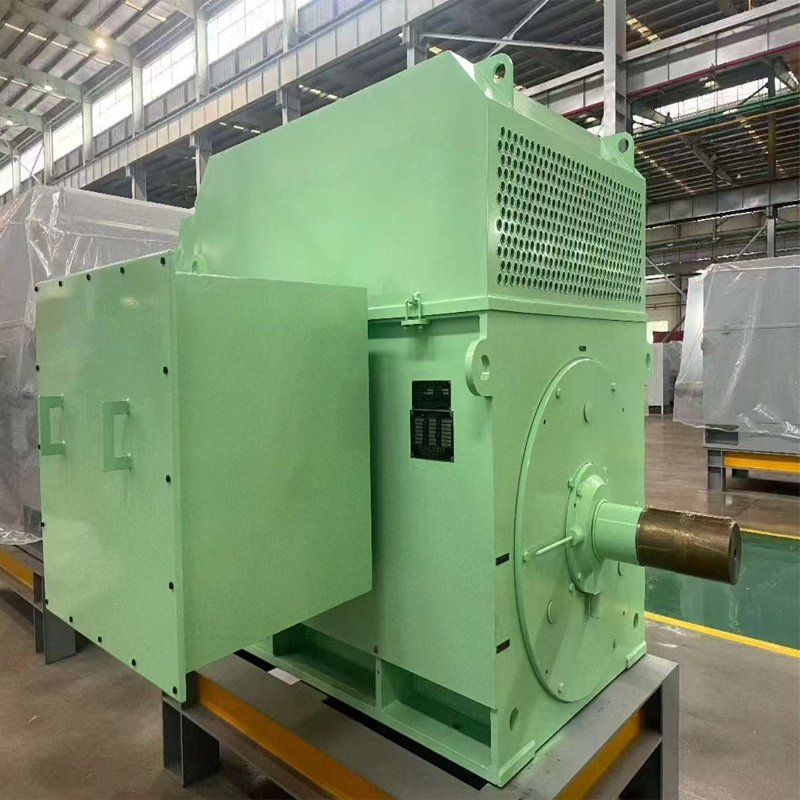

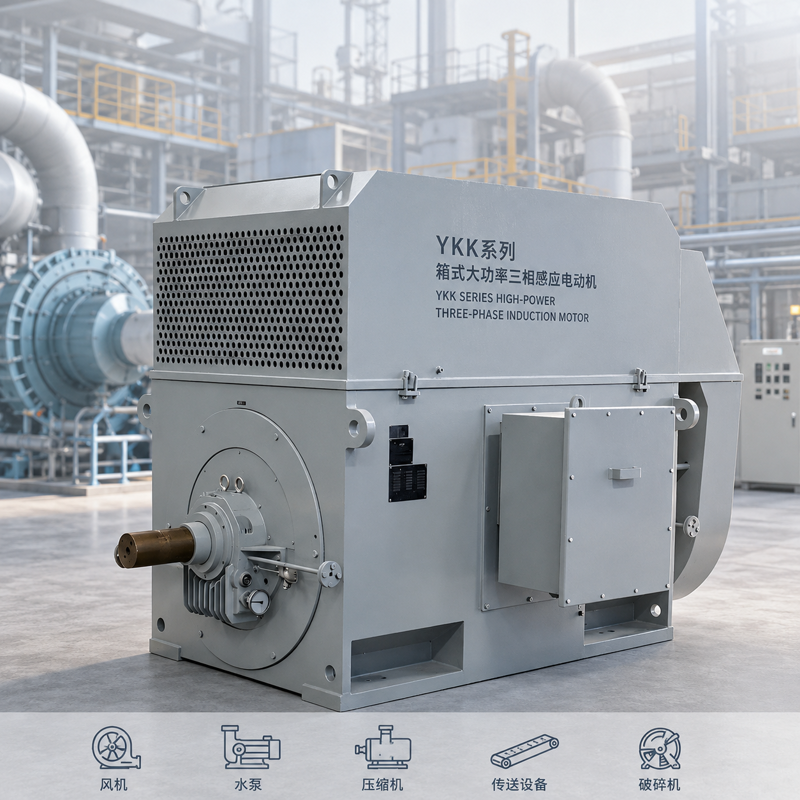

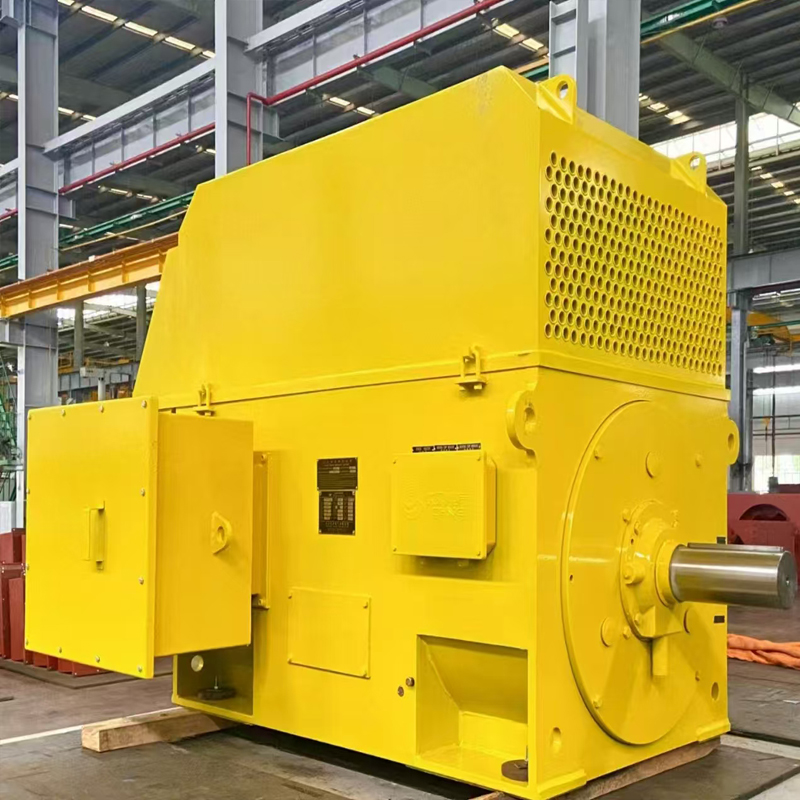

YKK Series Box-Type High-Voltage Three-Phase Motors (355-1120mm) 6KV

Looking for reliable, heavy-duty industrial motor solutions? The YKK Series Box-Type High-Voltage Three-Phase AC Motors represent the pinnacle of modern electrical engineering. Developed by WGT China Weigao Transmission through over 70 years of manufacturing expertise, this series utilizes cutting-edge electromagnetic and structural analysis to deliver unmatched performance in the most demanding industrial environments.

Key Technical Advantages

Our YKK series is engineered using modern "Field & Circuit" electromagnetic design and Finite Element Method (FEM) analysis to ensure premium quality:

• Superior Overload Capacity: Our "Field-Circuit" design ensures an accurate maximum torque multiplier, guaranteeing robust performance under heavy loads.
• Vibration & Noise Control: Precision FEM mechanical analysis allows for optimized material usage, effectively suppressing vibration and minimizing noise levels.
• High Efficiency & Thermal Management: Advanced cooling simulation minimizes ventilation losses, significantly enhancing motor efficiency and optimizing temperature rise.
• Easy Installation: The robust box-type structure is designed for straightforward integration and hassle-free routine maintenance.

Technical Specifications

• Power Range: 220 kW – 10000 kW
• Voltage Range: 6 kV
• Frame Size: 355 mm – 1120 mm
• Premium Materials:Frame: Cast iron or heavy-duty welded steel.Stator/Rotor: High-conductivity premium copper windings.Shaft: ASTM 1045 high-strength steel.Bearings: SKF, FAG, or equivalent high-quality brands.

Industrial Applications

The YKK series provides stable, high-voltage performance for critical mechanical equipment in:

• Energy & Power: Power station auxiliary fans and pump systems.
• Oil, Gas & Chemical: Industrial compressors, high-pressure pumps, and heavy-duty mixers.
• Mining & Metallurgy: Conveyors, crushers, shredders, and steel rolling mills.
• Manufacturing: Cement kilns, textile machinery, and large-scale grain processing.

Quality Assurance & Testing Protocol

At WGT China Weigao Motor, every motor undergoes a rigorous multi-stage inspection process. Each unit is delivered with a Certified Test Report.

• Routine Tests: DC resistance, insulation resistance, high-voltage withstand, no-load parameters, and vibration/noise analysis.
• Type Tests: Full-load efficiency, power factor, temperature rise (stator/bearing), and overload capability verification.
• Process Control: From raw material physical/chemical testing (coils, iron cores) to dynamic rotor balancing, every stage is audited for precision.

Painting, Packaging & Warranty

• Surface Treatment: Standard 120μm coating (40μm primer + 80μm finish). Custom colors available.
• Export Packaging: Seaworthy, fumigated wooden cases designed for safe long-distance international shipping.
• Warranty: 12 months from commissioning or 18 months from delivery (whichever comes first). Extended warranty options are available upon request.

Strategic Partnership Announcement: WGT & Changli Electric Join Forces for Global Expansion

WGT China Weigao Transmission and Changli Electric are proud to officially announce the establishment of a comprehensive strategic partnership. This alliance marks a significant milestone in our commitment to driving international industrial development, combining our strengths to open a new chapter in global exports and build a mutually beneficial industrial footprint.

1. A Legacy of Excellence

Founded in 1946, Changli Electric is a core subsidiary of the Changli Group and consistently ranks among China’s Top 10 industrial motor manufacturers. With over 80 years of profound expertise, we have built a comprehensive service ecosystem covering:

• Intelligent R&D: Cutting-edge precision manufacturing processes.
• Production Management: Advanced, large-scale industrial management systems.
• Global Distribution: Extensive international sales and service networks.
• Lifecycle Support: Full-spectrum technical after-sales assistance.

Our industrial motor solutions empower dozens of critical sectors, including mining, cement, steel, metallurgy, petrochemicals, water conservancy, oil & gas, and pharmaceuticals.

2. Manufacturing Power & Technical Capacity

Our production capabilities are designed to meet the rigorous quality and volume demands of the global market:

• Modern Intelligent Base: Spanning 270,000 square meters with total fixed assets of RMB 1.094 billion.
• Precision Engineering: Equipped with 600+ units of high-precision processing machinery.
• Scalable Output: Achieving an annual production value exceeding RMB 500 million.
• Technical Expertise: A dedicated team of 400+ professionals, with 18% focused exclusively on R&D and innovation.

We provide customized, full-spectrum low, medium, and high-voltage motor products that comply with major international standards, including IEC, NEMA, and GOST.

3. Quality Assurance & Global Certification

Quality and safety are the foundations of our partnership. We hold numerous authoritative international certifications, including ISO9001, ISO14001, ISO45001, CE, ATEX, NEMA, CCS, and RS.

Our operations are supported by a dedicated testing center—the Hunan Provincial Quality Supervision Station for Small and Medium-sized Motors. As an officially authorized institution under the National Quality Inspection Center, this facility conducts nationwide quality supervision and is capable of comprehensive performance testing for motors with power ratings up to 20,000 kW.

Explore Our Motor Solutions

For inquiries regarding this partnership or to request a professional product catalog, please contact our international sales team today:

• Email: sales@changlimotor.com
• Official Website:www.changlimotor.com  ； www.wgt.net.cn

Document Downloads and Product Certifications

00_YKK_Series_Technical_Data_6KV_10KV.pdf

01_Changli Motor Product Catalog.pdf

02_Changli Motor Abbreviated Brochure.pdf

03_Changli Motor Production Equipment Photos.pdf

04_Changli Motor Production Equipment List.pdf

05_Changli  Motor EU CE & EAC Certifications.pdf

06_Changli Electric Promotional Video (English).mp4

07_Changli Electric Qualification Documents Portfolio 2024.pdf

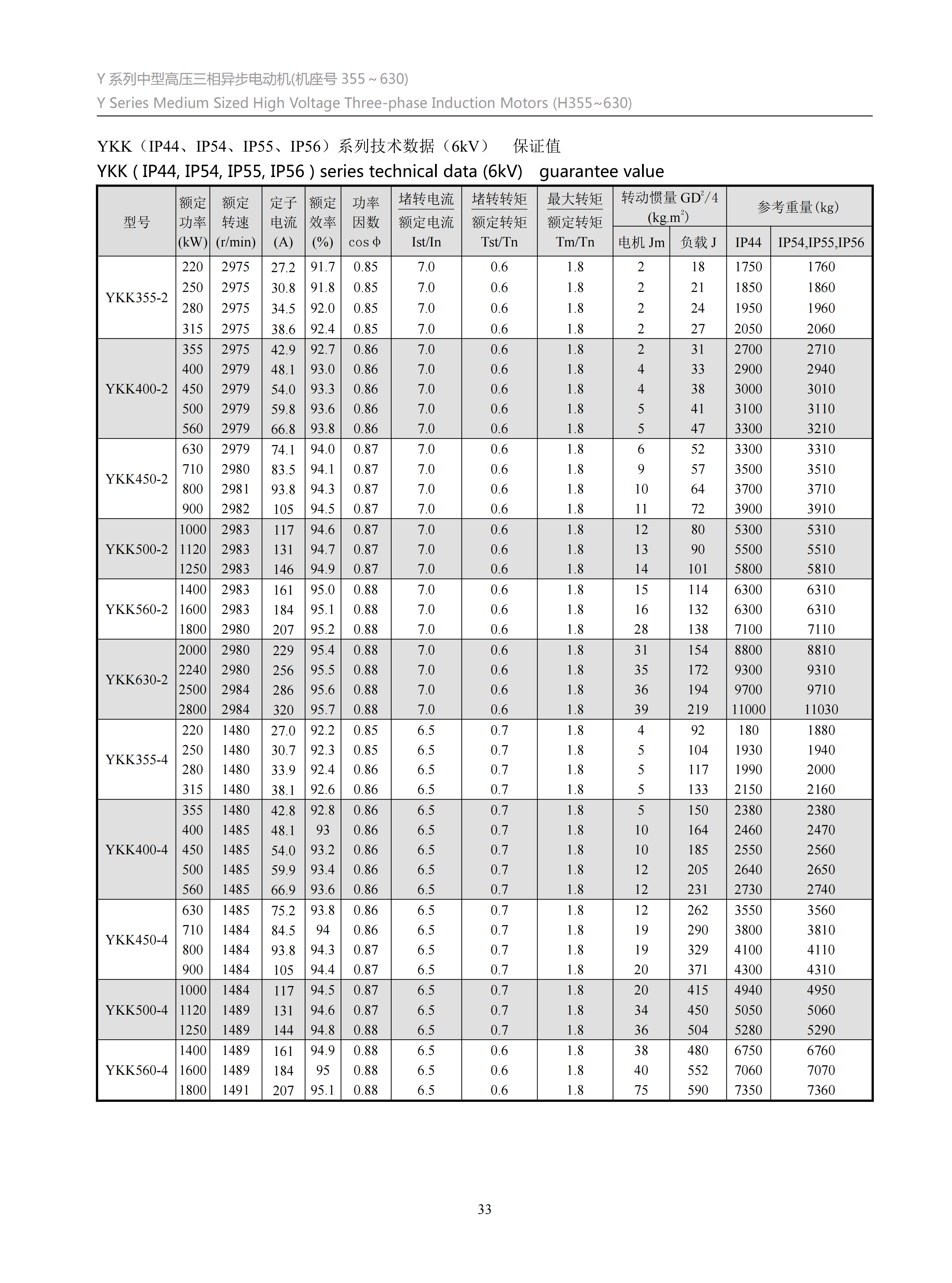

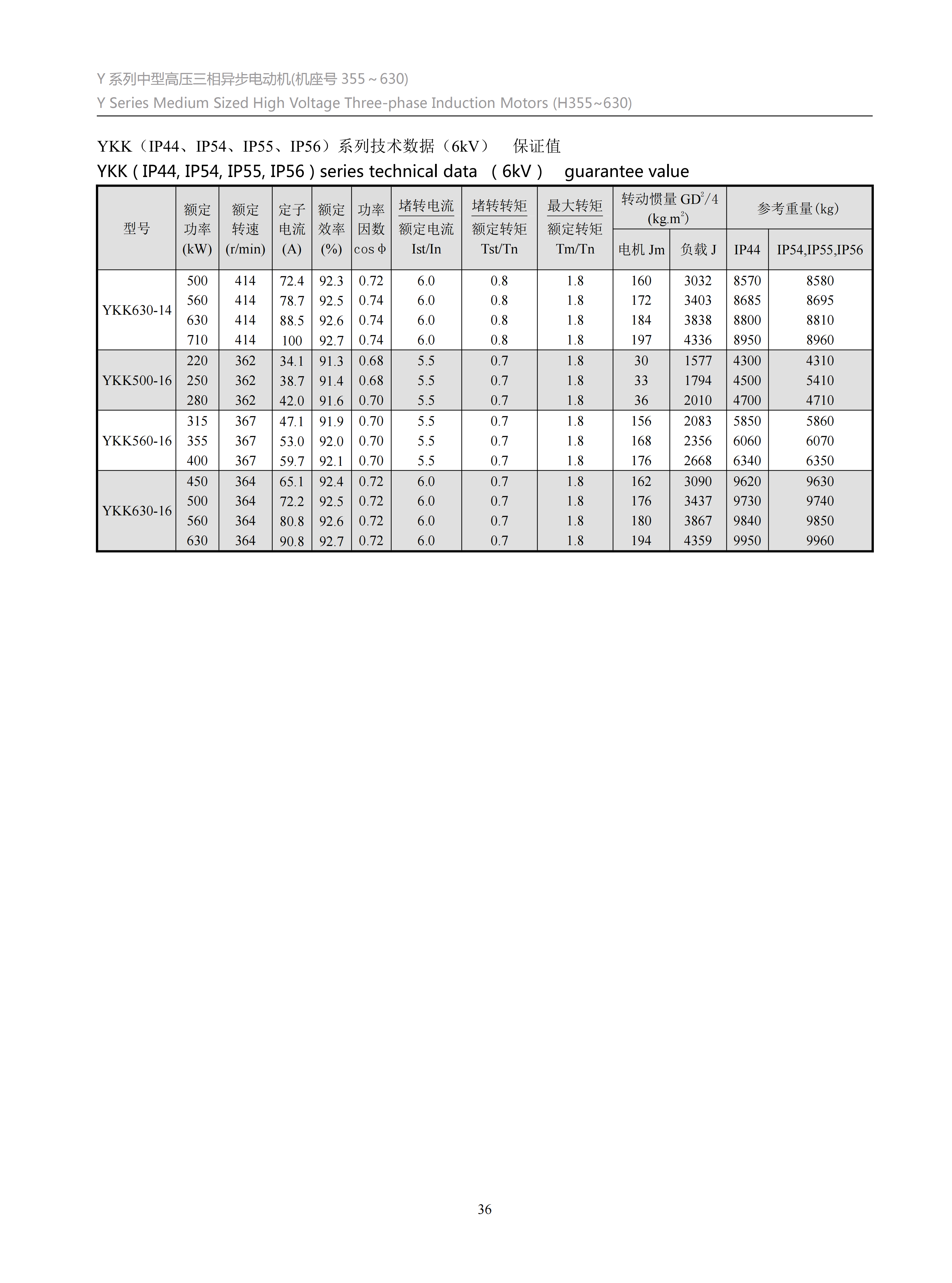

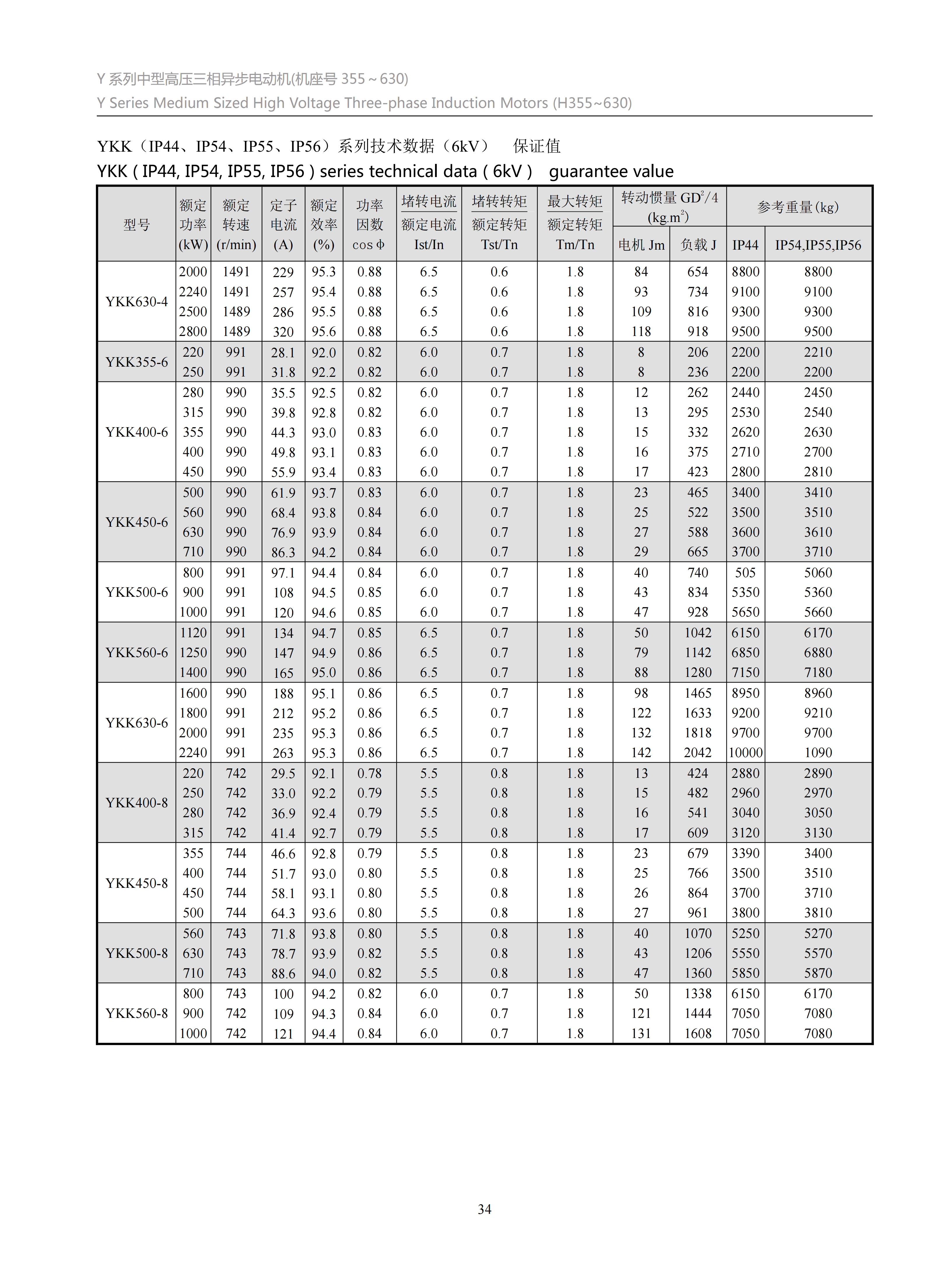

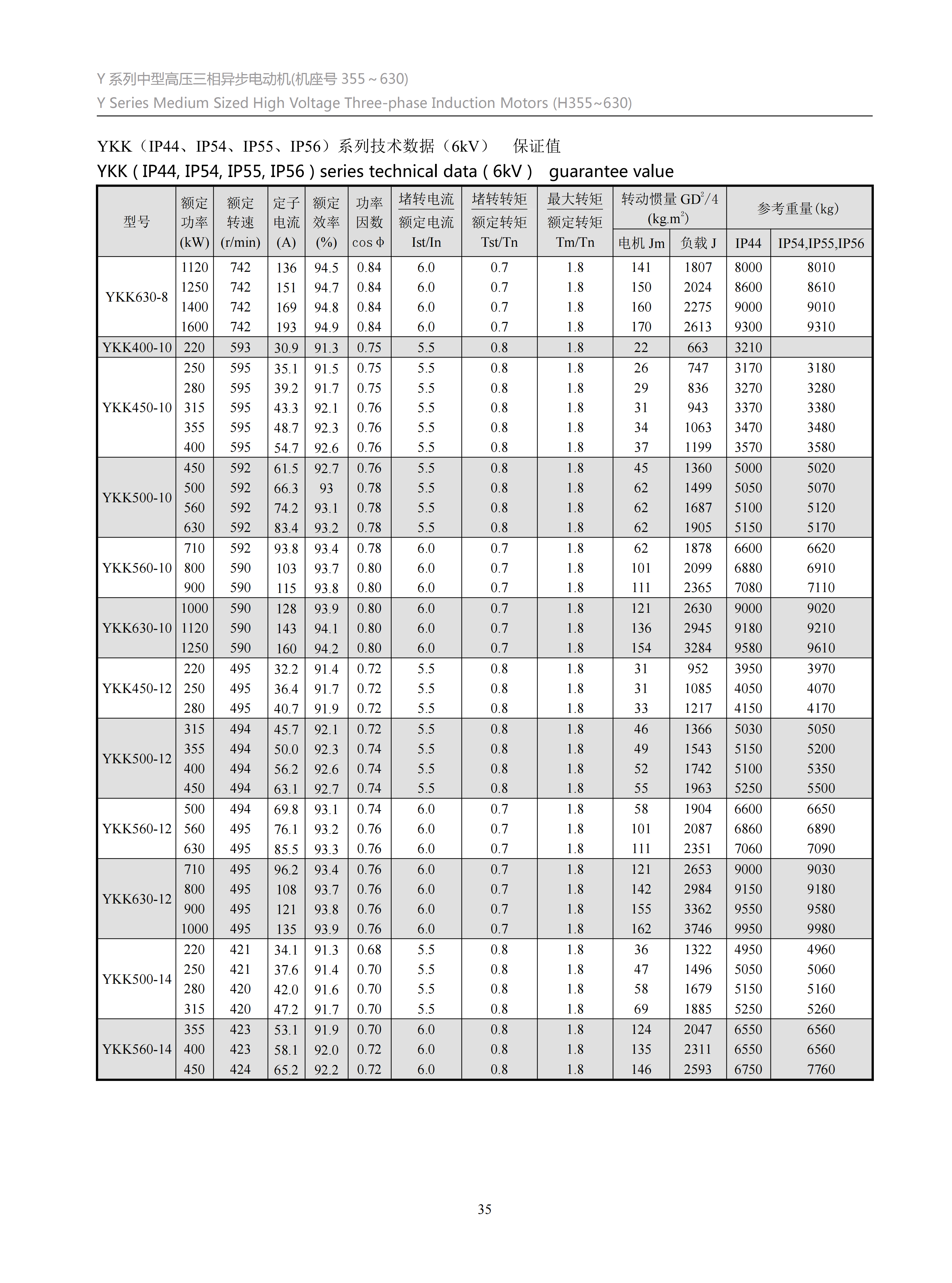

6kV YKK Model + Power Range

YKK355-2, 220~315kW; YKK400-2, 355~450kW; YKK450-2, 560~900kW; YKK500-2, 1000~1250kW; YKK560-2, 1400~1800kW; YKK630-2, 2000~2800kW; YKK355-4, 220~315kW; YKK400-4, 355~560kW; YKK450-4, 630~900kW; YKK500-4, 1000~1250kW; YKK560-4, 1400~1800kW; YKK630-4, 2000~2800kW; YKK355-6, 220~250kW; YKK400-6, 315~450kW; YKK450-6, 500~710kW; YKK500-6, 800~1000kW; YKK560-6, 1120~1400kW; YKK630-6, 1600~2240kW; YKK400-8, 220~315 kW; YKK450-8,355~500kW; YKK500-8,560~710kW; YKK560-8,800~1000kW; YKK630-8,1120~1600kW; kW; YKK450-10, 250~355kW; YKK500-10, 400~630kW; YKK560-10, 710~900kW; 220~280kW; YKK500-12,315~450kW; YKK560-12,500~630kW; YKK630-12,710~1000kW; YKK500-14,220~315kW; 60-14,355~450kW;YKK630-14,500~710kW;YKK500-16,220~280kW;YKK560-16,315~400kW;YKK630-16,450~630kW
