High Voltage Rib Cooled Motor

115 Views

High-Performance Industrial Motor Solutions
Modern industrial efficiency relies on high-quality Electric Motor systems. From Low Voltage Motor units to Large Electric Motor systems, our portfolio optimizes productivity.
In the AC Motor sector, we provide robust Three-Phase Asynchronous Motor solutions, including durable Squirrel Cage Motor designs and high-torque Wound Rotor Induction Motor (or Slip Ring Motor) options. For precision and power factor correction, our Synchronous Motor and Permanent Magnet Synchronous Motor range is industry-leading, often utilized as a Synchronous Generator or Synchronous Condenser.
Our High Voltage Motor series, such as our high-performance rib-cooled line, offers superior heat dissipation for heavy-duty applications (150kW–2250kW). We also provide specialized Vertical Motor and Explosion-Proof Motor configurations for demanding environments. As a provider of High Efficiency Motor technology, we deliver reliable, energy-saving power solutions for every Induction Motor application worldwide.

Get a Quote

Category :

High Voltage Motors

Description

High-Performance Motor Solutions: Engineering Excellence for Industrial Power

In the demanding world of modern industry, the efficiency and reliability of your Electric Motor fleet determine the productivity of the entire plant. Whether you are operating a Large Electric Motor in a power station or a precision Low Voltage Motor in an automated facility, selecting the right technology is essential.

The Foundation: Induction and Synchronous Technology

At the heart of most industrial applications lies the AC Motor. The most common workhorse is the Induction Motor, particularly the Three-Phase Asynchronous Motor. These machines are widely categorized by their rotor design:

Squirrel Cage Motor: Known for its rugged, maintenance-free construction, it is the standard for reliable, continuous operation.

Wound Rotor Induction Motor / Slip Ring Motor: These provide exceptional starting torque control, making them indispensable for heavy-duty mechanical equipment.

For applications requiring constant speed or power factor correction, the Synchronous Motor is the gold standard. When integrated into power systems, these can be configured as a Synchronous Generator to produce electricity, or operate as a Synchronous Condenser to stabilize grid voltage. Furthermore, the modern Permanent Magnet Synchronous Motor (PMSM) has revolutionized the industry by offering superior power density and efficiency.

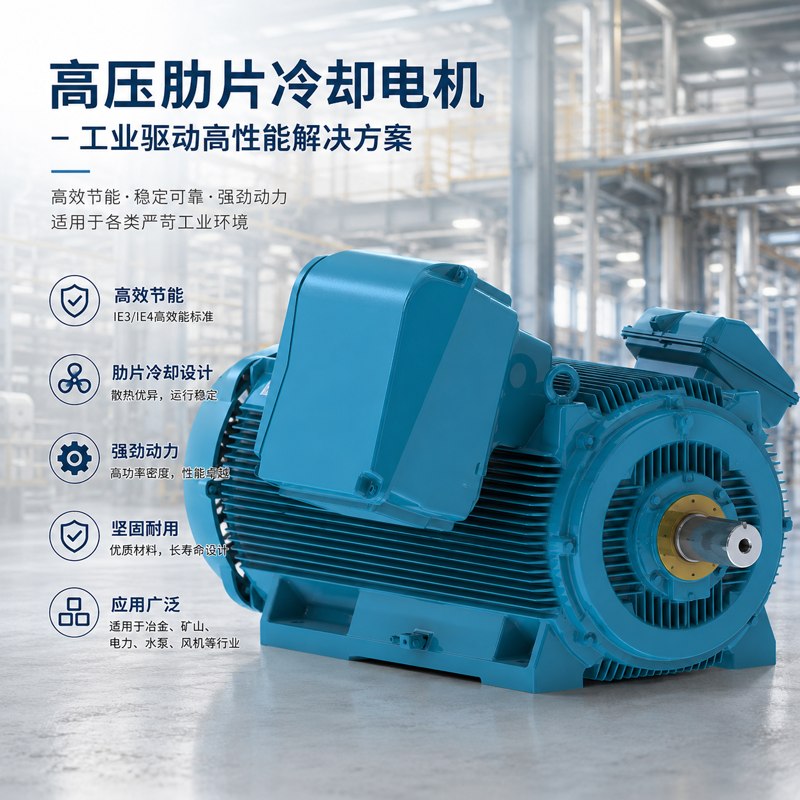

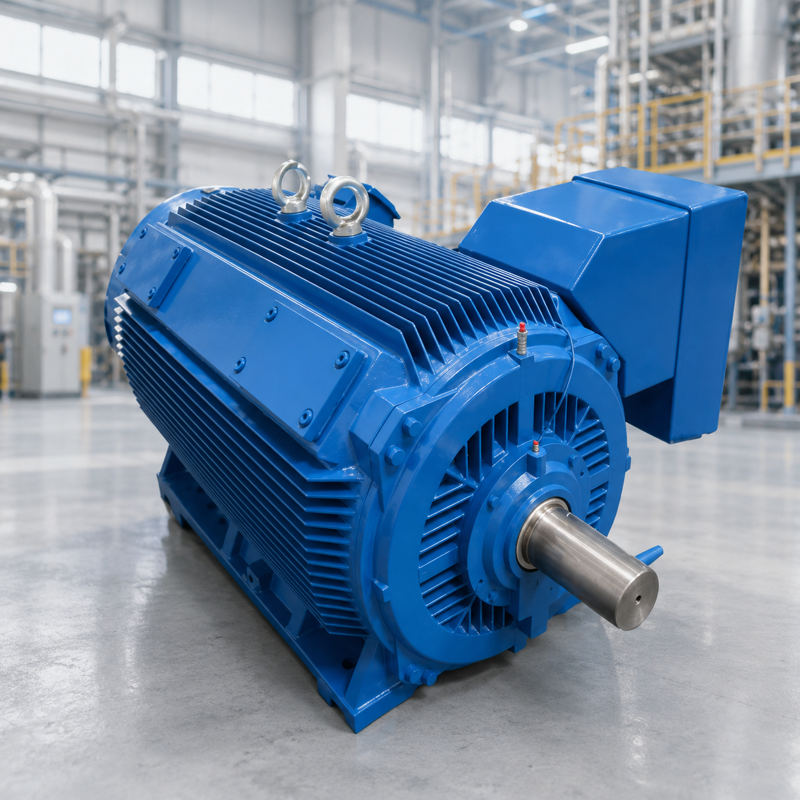

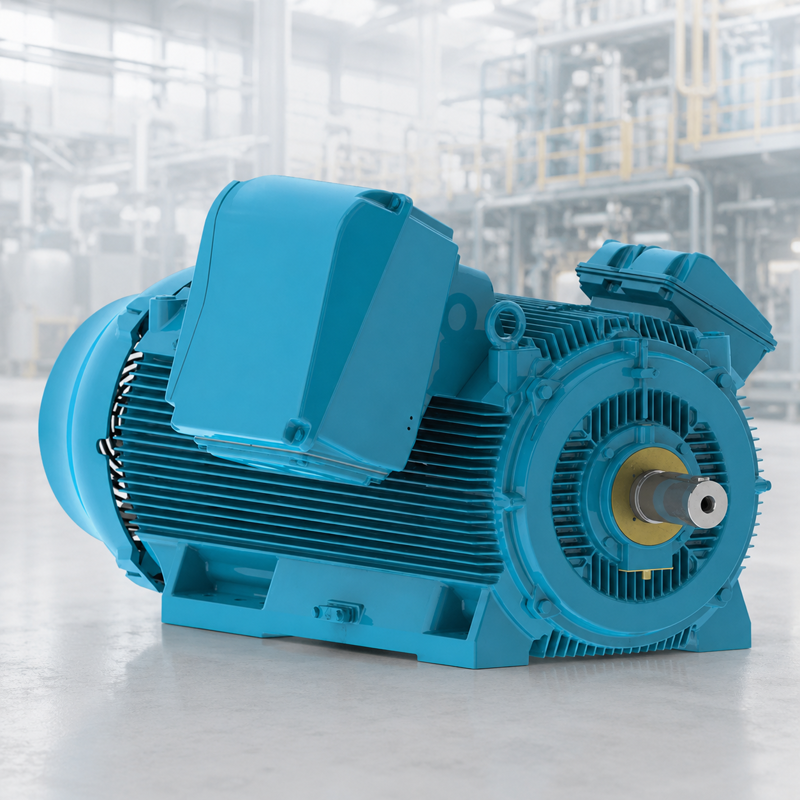

Specialized Solutions: High Voltage Rib Cooled Motors

For heavy-duty environments, our High Voltage Motor series—specifically the High Voltage Rib Cooled Motor—sets a benchmark for performance. Designed for applications ranging from 150kW to 2250kW, this High Efficiency Motor series utilizes a state-of-the-art Squirrel Cage Motor rotor and a robust cast iron casing with advanced rib cooling for maximum thermal dissipation.

High-end Motor Series: H355–H560

Rated Power Range: 150 kW–2250 kW

Rated Voltage: 3000V/6000V/6600V/10000V/11000V

Number of Poles: 2/4/6/8

Protection Class: IP54/IP55

Cooling Method: IC411

Rated Frequency: 50Hz/60Hz

Insulation Class: Class F

Mounting Type: IMB3/IMB35/IMV1

Key technical advantages include:

Adaptability: Available in various mounting forms, including the Vertical Motor configuration for pump and ventilation systems.

Safety: We offer specialized options, including the Explosion-Proof Motor for hazardous chemical and mining environments.

Standardization: Engineered to meet strict international protocols (IEC/NEMA/CSA), ensuring seamless integration into global operations.

Durability: The stator is treated with Vacuum Pressure Impregnation (VPI), providing superior insulation and moisture resistance.

Why Choose Our Industrial Motor Solutions?

We understand that every plant has unique requirements. Our comprehensive portfolio ensures that whether you need the simplicity of a Squirrel Cage Motor or the precision of a Permanent Magnet Synchronous Motor, we provide a solution that balances cost, efficiency, and longevity.

Our commitment to a High Efficiency Motor design ensures that your operations remain energy-conscious, reducing long-term operational expenditure. From the smallest Low Voltage Motor to the most robust Large Electric Motor, our team provides the technical expertise and manufacturing precision required to keep your industry moving forward.

Explore Our Motor Solutions

For inquiries regarding this partnership or to request a professional product catalog, please contact our international sales team today:

Email: sales@changlimotor.com
Official Website:www.changlimotor.com ； www.wgt.net.cn

Document Downloads and Product Certifications

00_YKK_Series_Technical_Data_6KV_10KV.pdf

01_Changli Motor Product Catalog.pdf

02_Changli Motor Abbreviated Brochure.pdf

03_Changli Motor Production Equipment Photos.pdf

04_Changli Motor Production Equipment List.pdf

05_Changli Motor EU CE & EAC Certifications.pdf

06_Changli Electric Promotional Video (English).mp4

07_Changli Electric Qualification Documents Portfolio 2024.pdf
